Transformer Channel

Experience the excellence of our Transformer Channel, a premium offering crafted by one of the top manufacturers, suppliers, and exporters in the industry with over 3 years of dedicated expertise. As you explore our Transformer Channel product line, you''ll find remarkable variants such as the Transformer Core Clamp Channel, Powder Coated Transformer Core Clamp Channel, Transformer Core Clamp Support Channel, Transformer Core Clamp C-Channel, and Transformer Side Core Clamp Channel, each engineered to deliver the finest performance in transformer applications. Our channels stand out for their unmatchable durability, superior corrosion resistance thanks to advanced powder coating, precise dimensional accuracy, and enhanced load-bearing capacity, making them the deal choice for mission-critical transformer assembly and support structures. Furthermore, our solutions are designed for easy installation and maintenance, ensuring time and cost savings throughout their service life. With a supply ability that covers All India, our Transformer Channels set industry benchmarks for quality and reliability, giving clients the advantage of working with a partner committed to delivering only the best in transformer channel technology.

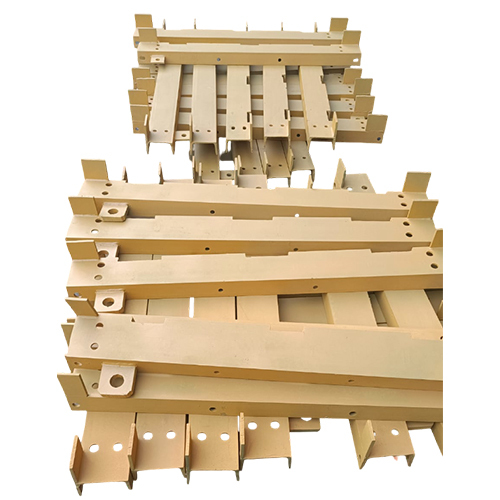

Transformer Core Clamp Channel

MOQ : 100 Pieces

  • Capacity
  • N/A (structural component)
  • Coil Structure
  • Other, Not applicable (structural component)
  • Cooling Type
  • Works with oil-immersed or dry-type transformer designs
  • Dimension (L*W*H)
  • Customizable; typically 500-1200 mm (L) x 40-70 mm (W) x 5-10 mm (Thickness)
  • Efficiency
  • Depends on transformer application, structurally 100% efficient
  • Frequency (MHz)
  • Applicable for standard transformer frequency ranges (50/60 Hz; not measured in MHz)
  • High Voltage
  • Supports cores for HV transformers as per specification
  • Low Voltage
  • Supports cores for LV transformers as per specification
  • Material
  • Mild Steel / Galvanized Steel
  • Operating Temperature
  • Functional up to 105C continuous
  • Phase
  • Other, Suitable for single and three-phase transformer core assemblies
  • Power Scope
  • Usable across various transformer power ratings
  • Product Type
  • Other, Transformer Core Clamp Channel
  • Rated Voltage
  • Compatible with transformer rated voltage (customizable as per transformer design)
  • Standard
  • IS 3024, IEC 60076 or as per client specification
  • Usage
  • Used to clamp and provide structural support to transformer core assemblies
  • Weight
  • Varies per size and length, typically 3-12 kg per channel

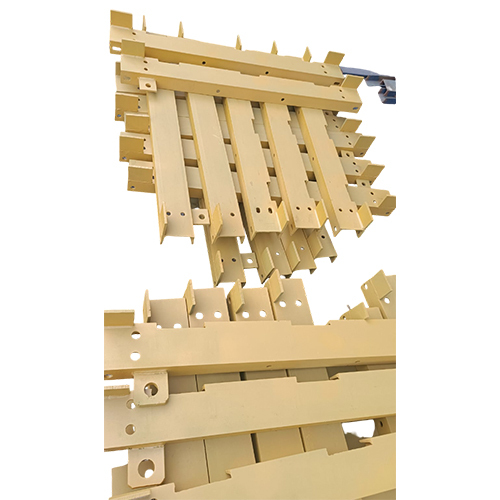

Powder Coated Transformer Core Clamp Channel

MOQ : 100 Pieces

  • Capacity
  • Custom as per transformer specifications
  • Dimension (L*W*H)
  • Customizable as per requirement
  • Efficiency
  • Depends on transformer design
  • High Voltage
  • As per transformer design
  • Low Voltage
  • As per transformer design
  • Material
  • Mild Steel (MS), Powder Coated
  • Operating Temperature
  • -20C to 85C
  • Phase
  • Other, Suitable for Single Phase & Three Phase Transformer Cores
  • Power Scope
  • Power and Distribution Transformers
  • Product Type
  • Other, Core Clamp Channel
  • Rated Voltage
  • As per transformer design
  • Standard
  • IS 3024 or as per customer specification
  • Usage
  • Used to securely hold and fasten transformer cores in position
  • Weight
  • Varies as per dimension and transformer rating

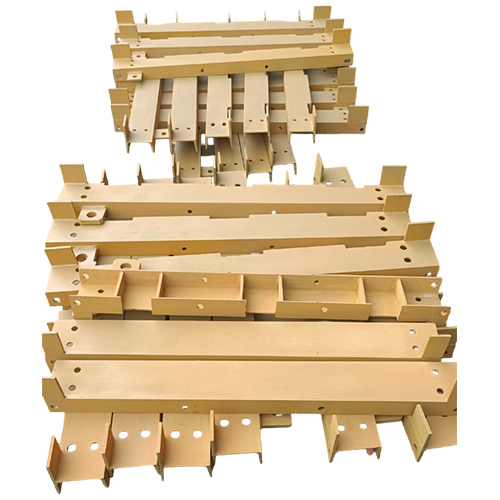

Transformer Core Clamp Support Channel

MOQ : 100 Pieces

  • Dimension (L*W*H)
  • Customizable (Standard: 900 x 60 x 8 mm per channel)
  • Material
  • Mild Steel / Galvanized Steel
  • Operating Temperature
  • -20C to +120C
  • Product Type
  • Other, Transformer Core Clamp Support Channel
  • Standard
  • IS 2062 / Custom fabrication
  • Usage
  • Transformer Core Clamping Support
  • Weight
  • Varies as per size (approx. 5-10 kg per channel)

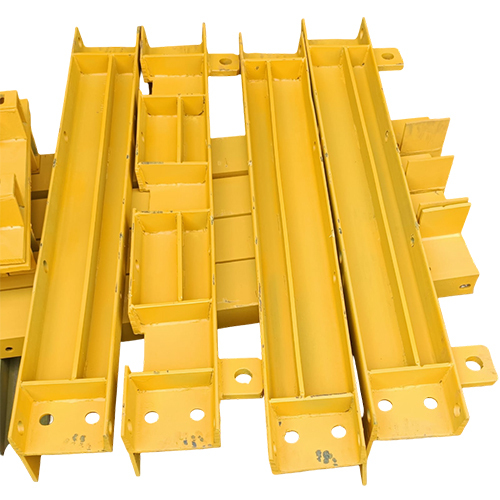

Transformer Core Clamp C-Channel

MOQ : 100 Pieces

  • Capacity
  • Custom as per transformer design
  • Dimension (L*W*H)
  • Customizable; Standard sizes available
  • Material
  • Mild Steel (MS) / Galvanized Steel
  • Operating Temperature
  • Up to 100C (depends on transformer design)
  • Product Type
  • Other, C-Channel Clamp for Transformer Core
  • Standard
  • IS 2062 / As per customer specification
  • Usage
  • Transformer Core Clamping
  • Weight
  • Varies by size and length (Approx. 2 to 6 kg per piece)

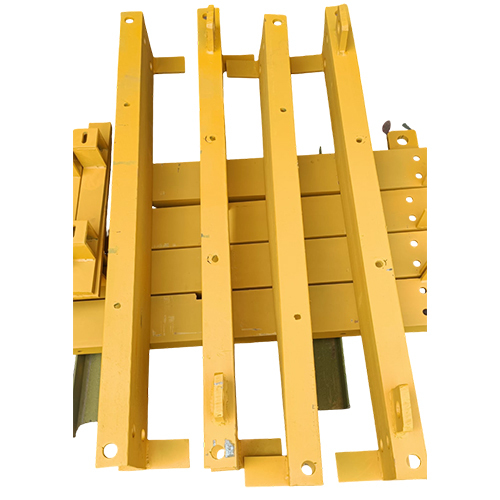

Transformer Side Core Clamp Channel

MOQ : 100 Pieces

  • Dimension (L*W*H)
  • Custom as per transformer design (Commonly 1200-2500 mm x 150-250 mm x 80-200 mm)
  • Material
  • Mild Steel (MS) or Structural Steel
  • Operating Temperature
  • -20C to +80C
  • Product Type
  • Other, Side Core Clamp Channel
  • Standard
  • As per IS 2062 or customer specification
  • Usage
  • Transformer Side Core Clamping
  • Weight
  • Varies as per design (Typically 20-100 kg)

Transformer End Core Clamp Channel

MOQ : 100 Pieces

  • Capacity
  • Depends on Transformer Size
  • Dimension (L*W*H)
  • Customized as per transformer core requirement
  • Material
  • Mild Steel (MS) / Galvanized Iron (GI)
  • Operating Temperature
  • Suitable for transformer application (ambient to 100C)
  • Power Scope
  • Mechanical Fixing/Clamping
  • Product Type
  • Other, Clamp Channel
  • Standard
  • IS 2062 or equivalent structural steel standard
  • Usage
  • Transformer End Core Clamping
  • Weight
  • Varies as per dimensions

MS Transformer Core Clamp Fabricated Channel

MOQ : 100 Pieces

  • Capacity
  • Suitable for various transformer sizes
  • Dimension (L*W*H)
  • Customizable, example: 800mm x 50mm x 5mm
  • Frequency (MHz)
  • N/A (mechanical component, not electrical)
  • Material
  • Mild Steel (MS)
  • Operating Temperature
  • Up to 120C (environmental)
  • Product Type
  • Other, Fabricated Channel Core Clamp
  • Standard
  • IS 2062 or equivalent structural standard
  • Usage
  • Used for clamping and supporting transformer core structures
  • Weight
  • Varies based on size, typically between 2-6 kg per piece
